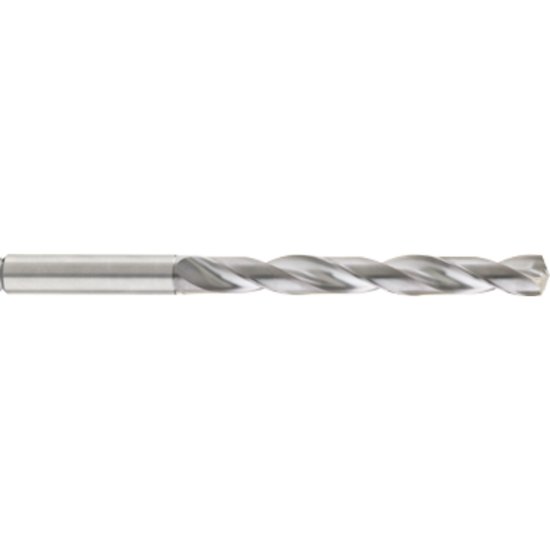

Gorilla Mill GD6562X3 Carbide Drill 0.6562 16.67mm - 21/32 Dia Cylindrical0.7031 TiAlN Solid 140°

Part Number: GOR80114 ISO: GD6562X3
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1103880
$349.03

Description

GORILLA 80114 Carbide Drill Shank 0.7031 TiAlN 0.6562 16.67MM - 21/32 Drill Dia140°Solid 3.0XD 2.5000 63.50MM Flute Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State WISCONSIN
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.8100 122.17MM
Shank/Pilot Dia 0.7031 17.86MM - 45/64
Flutes/Inserts 2
Tool Dia 0.6563 16.67MM - 21/32
Flute Length 2.5000 63.50MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Cut Dia Min 0.6562 16.67MM - 21/32
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
