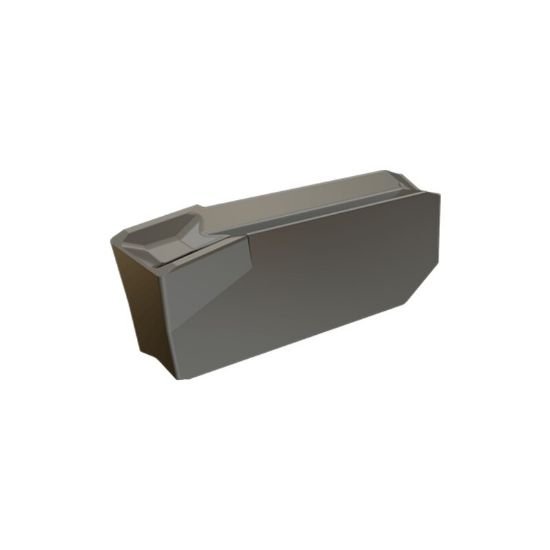

Picture of GIM 3C IC328 Iscar 6402138 Cut Off,Grooving Insert 0.1180 3.00mm Wide 0.0090 0.23mm Radius

GIM 3C IC328 Iscar 6402138 Cut Off,Grooving Insert 0.1180 3.00mm Wide 0.0090 0.23mm Radius

Part Number: ISC6402138 ISO: GIM 3C IC328 ANSI:GIM 3C IC328
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1082859
Vendor: Sussex Tool and Supply
$17.17
This product has a minimum quantity of 10

Description

ISCAR 6402138 Dog Bone Cut Off,Grooving Positive TiCN A tough substrate with PVD coating, suitable for a wide range of applications on steel and stainless steel at low to medium speeds and medium to high feeds. The grade is recommended for interrupted cuts and machining under unstable conditions.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style GI
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Insert Type/Oriantation Clamp Down
Dimensions & Sizing
Insert Size Ic 3
Cutting Width 0.1180 3.00MM
Geometry & Angles
Corner Radius 0.0090 0.23MM
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Face Groove Min Dia 6.3000
Materials & Finish
Cutting Edge Mat Carbide
Coating TICN
Grade IC328
