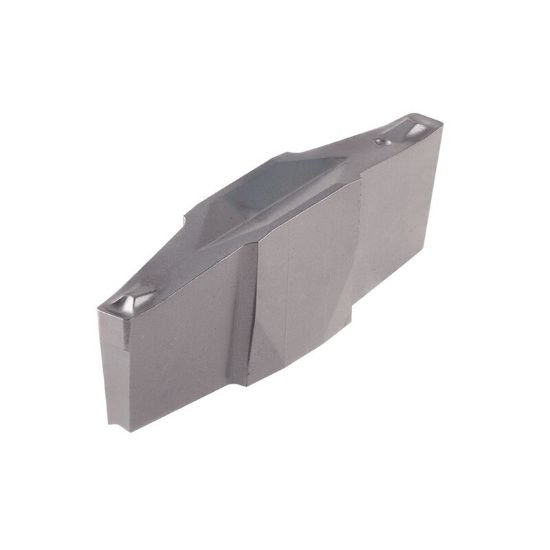

Picture of GDP 1.20-0.30-4768V2Q IC908 Iscar 6495499 Grooving,Polley V Grooving Insert 0.0470 1.19mm Wide 0.0120 0.30mm Radius

GDP 1.20-0.30-4768V2Q IC908 Iscar 6495499 Grooving,Polley V Grooving Insert 0.0470 1.19mm Wide 0.0120 0.30mm Radius

Part Number: ISC6495499 ISO: GDP 1.20-0.30-4768V2Q IC908 ANSI:GDP 1.20-0.30-4768V2Q IC908
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1083909
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

ISCAR 6495499 Dog Bone Grooving,Polley V Grooving Positive TiAlN A tough submicron grain size substrate with a PVD coating, recommended for general use for diverse operations on materials such as steels, alloy steels, austenitic stainless steel and high temperature alloys at a wide range of cutting speeds. Features high wear resistance and chipping durability.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style GD
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Insert Type/Oriantation Clamp Down
Dimensions & Sizing
Insert Size Ic 1
Cutting Width 0.0470 1.19MM
Geometry & Angles
Corner Radius 0.0120 0.30MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, High Temp
Depth Of Cut Max 0.2560
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Grade IC908
