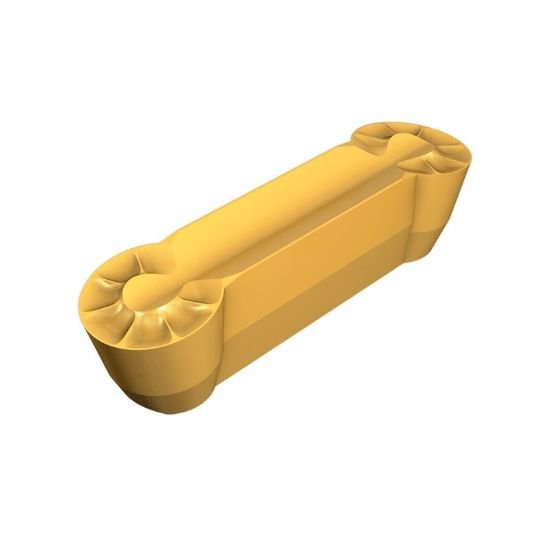

Picture of GDMY 840 IC5010 Iscar 6404282 Grooving,Groove Turning Insert 0.3150 8.00mm Wide 0.1570 3.99mm Radius

GDMY 840 IC5010 Iscar 6404282 Grooving,Groove Turning Insert 0.3150 8.00mm Wide 0.1570 3.99mm Radius

Part Number: ISC6404282 ISO: GDMY 840 IC5010 ANSI:GDMY 840 IC5010
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1083104
Vendor: Sussex Tool and Supply
$49.03
This product has a minimum quantity of 10

Description

ISCAR 6404282 Dog Bone Grooving,Groove Turning Positive TiCN + Al2O3 + TiN A hard substrate, improved MTCVD and a thick alpha alumina CVD coating. Recommended mainly for grey cast iron at stable or slightly unstable conditions. Can be used successfully also on nodular cast iron.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style GD
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Insert Type/Oriantation Clamp Down
Dimensions & Sizing
Insert Size Ic 8
Cutting Width 0.3150 8.00MM
Geometry & Angles
Corner Radius 0.1570 3.99MM
Performance & Capacity
Cut Rating Gray Iron, Ductile Iron
Depth Of Cut Max 0.9840
Face Groove Min Dia 1.9700
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3 + TiN
Grade IC5010
