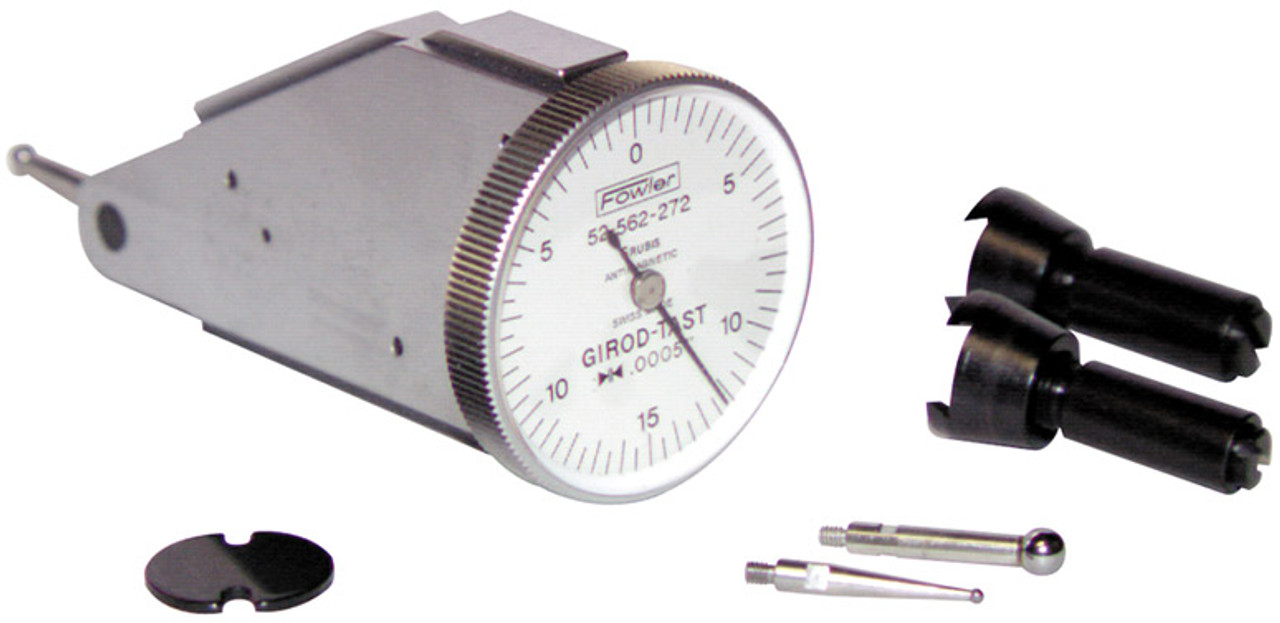

Fowler 525622720 Testind.0005"Perp

Description

Fowler-Girod Test Indicators have long been regarded internationally as "the best", incorporating Swiss quality and workmanship.• Rugged one-piece housing, corrosion resistant with satin chrome finish.• For high accuracy and repeatability, six bearings are jeweled. Reinforced flanges.• Adjustable ball bearings guarantee perfect point movement under all conditions. • Contact point can be displaced 210°. Automatic reversing contact point.• Supplied with .040", .080" and .120" carbide contact points on all indicators except No. 52-562-474-0 and No. 52-563-474-0 which are supplied with only one point.• Shockproof and nonmagnetic.• Microfine graduations.• Three dovetails; top, back and bottom for easy mounting and positioning.• Measuring pressure—7 grams.• Movement not influenced by any outside pressures, and measuring value transmitted by means of rack and pinion.• Face Dia. 1" and 1-1⁄2" for easy reading.• Adjustable bezel and dial are easily set and reset to zero. • Inch series supplied with two dovetail clamping stems: 7⁄32" No. 52-565-091-0 and 1⁄4" No. 52-565-092-0. Metric series supplied with dovetail clamping stems: 5⁄32" (4mm) No. 52-565-090-0 & 5⁄16" (8mm) No. 52-565-093-0• Includes fitted case. Brass
