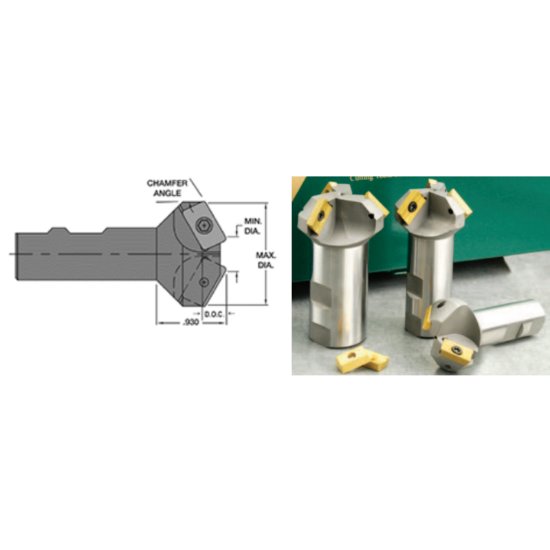

Picture of Everede Tool CHM-500-60 Parallelogram 60.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.4580 37.03mm Cutter Dia

Everede Tool CHM-500-60 Parallelogram 60.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.4580 37.03mm Cutter Dia

Part Number: EVE01267

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: 1004421
Vendor: Sussex Tool and Supply
$138.85

Everede CHM-500-60 end mill with 60 degree chamfer steel cutter. Weldon connection 0.7500. 37.03mm diameter cutter. Tool post connection type Weldon.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.7500

Grades & Coatings

  • Alternate Description: EVEREDE TOOL CHM-500-60 Parallelogram 60.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.4580 37.03MM Cutter Dia CHM-500-60 CHM-500-60

Other Details

  • Brand: EVEREDE TOOL
  • Shipping State: ILLINOIS
  • Made In Usa: No
  • Type Of Tool: End Mill

Technical Overview

What It Does

Chamfers edges with parallelogram profile. Performs chamfer milling at 60.0° angle. Cutter diameter is 37.03mm.

Composition

Made of steel. Weldon connection at 0.7500. Cutter diameter 37.03mm.

Typical Uses

Used in milling machines with Weldon toolpost. Chamfers workpieces at 60.0°. Fits CHM-500-60 specification.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Chamfer Mill
Made In USA No
Tool Material Steel
Machine Side (Toolpost) WELDON0.7500
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.0000 76.20MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 1.4580 37.03MM
Flutes Or Inserts 2
Type of Tool End Mill
Insert Or Tool Tool
Insert Application General Purpose
Insert Style AP
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 16
Cut Diameter Min 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.2770
Cut Diameter Max 1.4580 37.03MM
Cutting Edge Angle 60.0°
