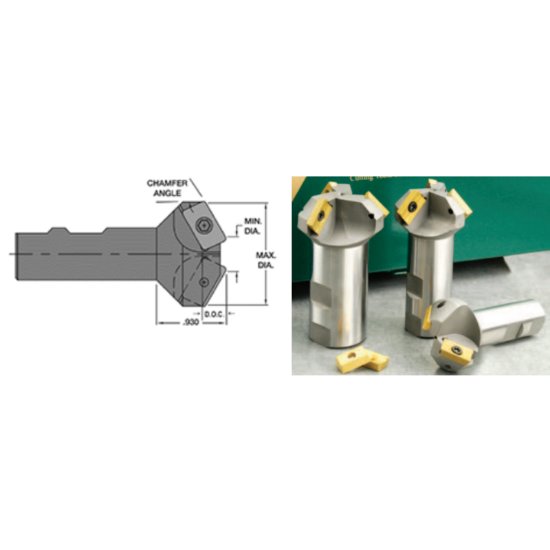

Picture of Everede Tool CHM-1.438-41 Parallelogram 41.0°, Chamfer Mill End Mill Weldon 1.5000 Positive 2.1640 54.97mm Cutter Dia

Everede Tool CHM-1.438-41 Parallelogram 41.0°, Chamfer Mill End Mill Weldon 1.5000 Positive 2.1640 54.97mm Cutter Dia

Part Number: EVE01264 ISO: CHM-1.438-41 ANSI:CHM-1.438-41

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EVEREDE TOOL
SKU: 1004431
Vendor: Sussex Tool and Supply
$223.71
EVEREDE TOOL CHM-1.438-41 Parallelogram 41.0°, Chamfer Mill End Mill Weldon 1.5000 Positive 2.1640 54.97MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.5000 38.10MM
Overall Length 3.6000 91.44MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 3
Tool Dia 2.1640 54.97MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 16
Cut Dia Min 1.4380 36.53MM
Depth Of Cut Max 0.4180
Cut Dia Max 2.1640 54.97MM
Cutting Edge Angle 41.0°
