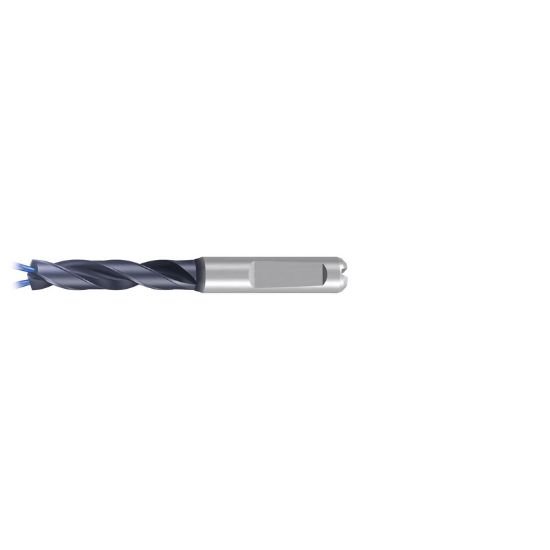

Picture of Emuge TA503344.0595 Carbide Drill Coolant Thru Carbide 140° 0.234 Diameter 0.236 Shank 2.598 OAL 1.102 Flute 2 Flute AlCrN

Emuge TA503344.0595 Carbide Drill Coolant Thru Carbide 140° 0.234 Diameter 0.236 Shank 2.598 OAL 1.102 Flute 2 Flute AlCrN

Part Number: EMUTA503344.0595 ISO: TA503344.0595
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1104226

Description

EMUGE 32734 Carbide Drill Shank 0.2362 AlCrN 0.2344 5.95MM - 15/64 Drill Dia140°Coolant Thru 3.0XD 1.1020 27.99MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.5984 66.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.2344 5.95MM - 15/64
Flute Length 1.1020 27.99MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Cut Dia Min 0.2344 5.95MM - 15/64
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
