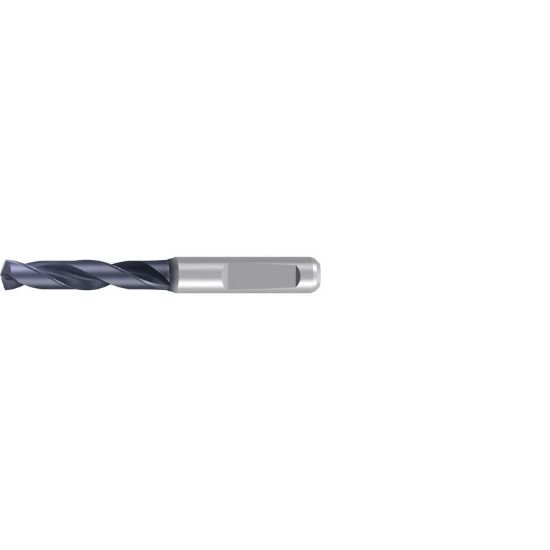

Picture of Emuge TA403324.1700 Carbide Drill Solid Carbide 140° 0.669 Diameter 0.708 Shank 4.842 OAL 2.874 Flute 2 Flute TiAlN

Emuge TA403324.1700 Carbide Drill Solid Carbide 140° 0.669 Diameter 0.708 Shank 4.842 OAL 2.874 Flute 2 Flute TiAlN

Part Number: EMUTA403324.1700 ISO: TA403324.1700
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$635.21
SKU: 1106045

Description

EMUGE 26829 Carbide Drill Shank 0.7087 TiAlN 0.6692 17.00MM Drill Dia140°Solid 3.0XD 2.8740 73.00MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.8425 123.00MM
Shank/Pilot Dia 0.7087 18.00MM
Flutes/Inserts 2
Tool Dia 0.6693 17.00MM
Flute Length 2.8740 73.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Cut Dia Min 0.6692 17.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
