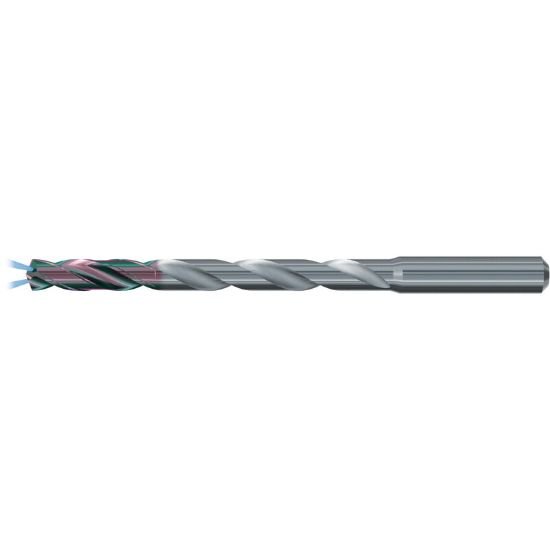

Picture of Emuge TA223344.2000 Carbide Drill Coolant Thru Carbide 135° 0.787 Diameter 0.787 Shank 4.015 OAL 2.165 Flute 2 Flute TiAlN-TA14

Emuge TA223344.2000 Carbide Drill Coolant Thru Carbide 135° 0.787 Diameter 0.787 Shank 4.015 OAL 2.165 Flute 2 Flute TiAlN-TA14

Part Number: EMUTA223344.2000 ISO: TA223344.2000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$1,462.52
SKU: 1104909

Description

EMUGE 33213 Carbide Drill Shank 0.7874 TiAlN-TA14 0.7874 20.00MM Drill Dia135°Coolant Thru 8.0XD 2.1650 54.99MM Flute Carbide AlTiN Coating Provides Exceptional Oxidation Resistance & Extreme Hardness
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.0157 102.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7874 20.00MM
Flute Length 2.1650 54.99MM
Dia Deep 8.0x Dia
Geometry & Angles
Included Angle 135°
Performance & Capacity
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Cut Dia Min 0.7874 20.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN-TA14
