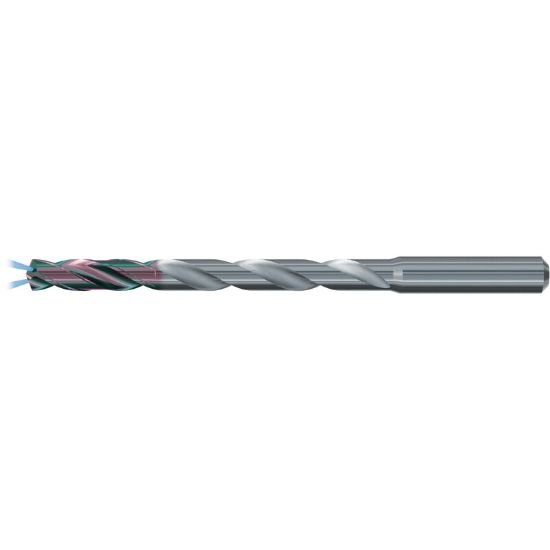

Picture of Emuge TA223344.1900 Carbide Drill Coolant Thru Carbide 135° 0.478 Diameter 0.787 Shank 4.015 OAL 2.165 Flute 2 Flute TiAlN-TA14

Emuge TA223344.1900 Carbide Drill Coolant Thru Carbide 135° 0.478 Diameter 0.787 Shank 4.015 OAL 2.165 Flute 2 Flute TiAlN-TA14

Part Number: EMUTA223344.1900 ISO: TA223344.1900

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1104907
Vendor: Sussex Tool and Supply
$1,069.62
EMUGE 33211 Carbide Drill Shank 0.7874 TiAlN-TA14 0.4783 12.15MM Drill Dia135°Coolant Thru 8.0XD 2.1650 54.99MM Flute Carbide AlTiN Coating Provides Exceptional Oxidation Resistance & Extreme Hardness
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Coating TiAlN-TA14
Mach Side Connection Size 0.7874 20.00MM
Overall Length 4.0157 102.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.4783 12.15MM
Type Of Tool Drill
Included Angle 135°
Flute Length 2.1650 54.99MM
Cut Dia Min 0.4783 12.15MM
Dia Deep 8.0x Dia
