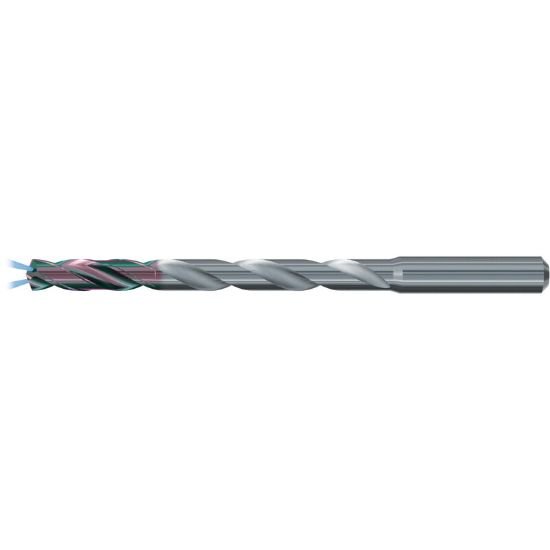

Picture of Emuge TA223344.1800 Carbide Drill Coolant Thru Carbide 135° 0.708 Diameter 0.708 Shank 4.015 OAL 2.165 Flute 2 Flute TiAlN-TA14

Emuge TA223344.1800 Carbide Drill Coolant Thru Carbide 135° 0.708 Diameter 0.708 Shank 4.015 OAL 2.165 Flute 2 Flute TiAlN-TA14

Part Number: EMUTA223344.1800 ISO: TA223344.1800
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$1,495.76
SKU: 1104906

Description

EMUGE 33210 Carbide Drill Shank 0.7087 TiAlN-TA14 0.7087 18.00MM Drill Dia135°Coolant Thru 8.0XD 2.1650 54.99MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.0157 102.00MM
Shank/Pilot Dia 0.7087 18.00MM
Flutes/Inserts 2
Tool Dia 0.7087 18.00MM
Flute Length 2.1650 54.99MM
Dia Deep 8.0x Dia
Geometry & Angles
Included Angle 135°
Performance & Capacity
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Cut Dia Min 0.7087 18.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN-TA14
