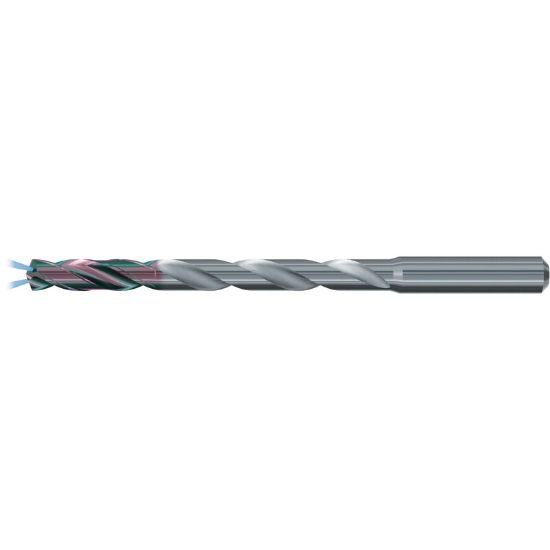

Picture of Emuge TA223344.1746 Carbide Drill Coolant Thru Carbide 135° 0.687 Diameter 0.708 Shank 4.015 OAL 2.165 Flute 2 Flute TiAlN-TA14

Emuge TA223344.1746 Carbide Drill Coolant Thru Carbide 135° 0.687 Diameter 0.708 Shank 4.015 OAL 2.165 Flute 2 Flute TiAlN-TA14

Part Number: EMUTA223344.1746 ISO: TA223344.1746
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$1,392.04
SKU: 1104904

Description

EMUGE 33208 Carbide Drill Shank 0.7087 TiAlN-TA14 0.6875 17.46MM - 11/16 Drill Dia135°Coolant Thru 8.0XD 2.1650 54.99MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.0157 102.00MM
Shank/Pilot Dia 0.7087 18.00MM
Flutes/Inserts 2
Tool Dia 0.6875 17.46MM - 11/16
Flute Length 2.1650 54.99MM
Dia Deep 8.0x Dia
Geometry & Angles
Included Angle 135°
Performance & Capacity
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Cut Dia Min 0.6875 17.46MM - 11/16
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN-TA14
