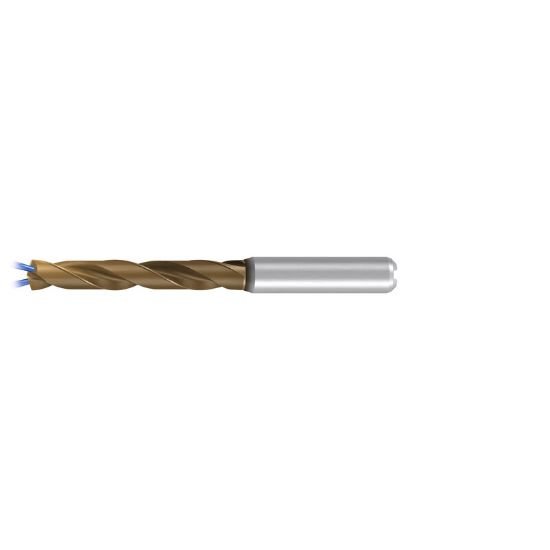

Picture of Emuge TA214524.1905 Carbide Drill Coolant Thru Carbide 140° 0.750 Diameter 0.787 Shank 6.023 OAL 3.976 Flute 2 Flute AlCrN

Emuge TA214524.1905 Carbide Drill Coolant Thru Carbide 140° 0.750 Diameter 0.787 Shank 6.023 OAL 3.976 Flute 2 Flute AlCrN

Part Number: EMUTA214524.1905 ISO: TA214524.1905
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$1,193.60
SKU: 1105507

Description

EMUGE 32684 Carbide Drill Shank 0.7874 AlCrN 0.7500 19.05MM - 3/4 Drill Dia140°Coolant Thru 5.0XD 3.9760 100.99MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.0236 153.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Flute Length 3.9760 100.99MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, High Temp, Titanium
Cut Dia Min 0.7500 19.05MM - 3/4
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
