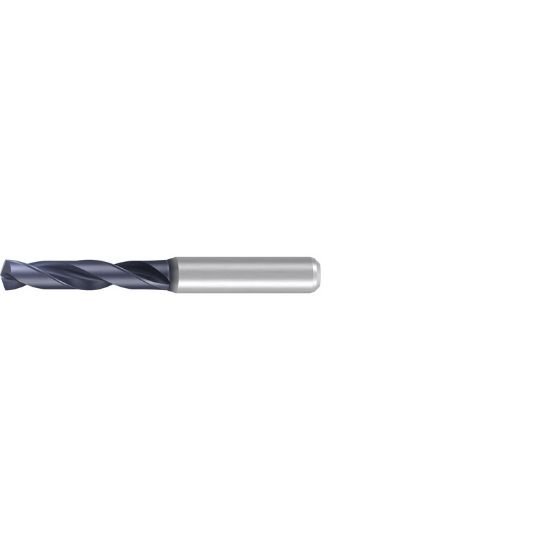

Emuge TA103324.2000 Carbide Drill Solid Carbide 140° 0.787 Diameter 0.787 Shank 5.157 OAL 3.110 Flute 2 Flute TiAlN

Name: Emuge TA103324.2000 Carbide Drill Solid Carbide 140° 0.787 Diameter 0.787 Shank 5.157 OAL 3.110 Flute 2 Flute TiAlN
SKU: 1105875
Price: 645.76 USD
Availability: InStock

Part Number: EMUTA103324.2000 ISO: TA103324.2000

Tool Cross-Reference

Looking for alternatives…

Manufacturer:

$645.76

Qty:

SKU: 1105875

Description

EMUGE 23359 Carbide Drill Shank 0.7874 TiAlN 0.7874 20.00MM Drill Dia140°Solid 3.0XD 3.1100 78.99MM Flute

Products specifications

Attribute name	Attribute value
General Information
Shipping State	MASSACHUSETTS
Made In USA	NO
Cutter Type	Carbide Drill
Coolant Thru	Non Coolant
Type Of Tool	Drill
Dimensions & Sizing
Overall Length	5.1575 131.00MM
Shank/Pilot Dia	0.7874 20.00MM
Flutes/Inserts	2
Tool Dia	0.7874 20.00MM
Flute Length	3.1100 78.99MM
Dia Deep	3.0x Dia
Geometry & Angles
Included Angle	140°
Performance & Capacity
Cut Rating	Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Cut Dia Min	0.7874 20.00MM
Materials & Finish
Tool Material	Carbide
Cutting Edge Mat	Carbide
Coating	TiAlN
