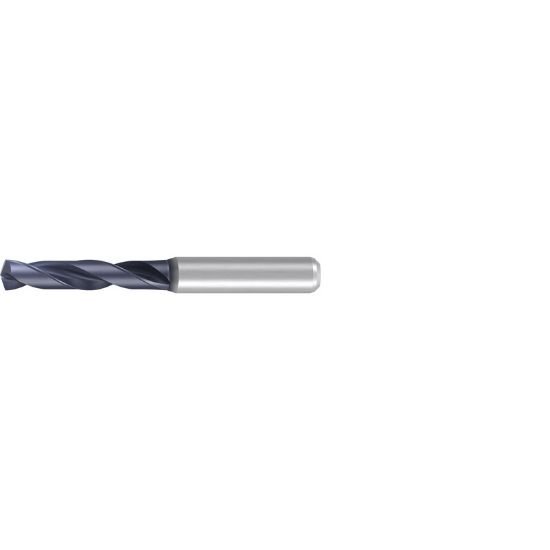

Picture of Emuge TA103324.1905 Carbide Drill Solid Carbide 140° 0.750 Diameter 0.787 Shank 5.157 OAL 3.110 Flute 2 Flute TiAlN

Emuge TA103324.1905 Carbide Drill Solid Carbide 140° 0.750 Diameter 0.787 Shank 5.157 OAL 3.110 Flute 2 Flute TiAlN

Part Number: EMUTA103324.1905 ISO: TA103324.1905
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$645.76
SKU: 1105874

Description

EMUGE 23358 Carbide Drill Shank 0.7874 TiAlN 0.7500 19.05MM - 3/4 Drill Dia140°Solid 3.0XD 3.1100 78.99MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 5.1575 131.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Flute Length 3.1100 78.99MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Cut Dia Min 0.7500 19.05MM - 3/4
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
