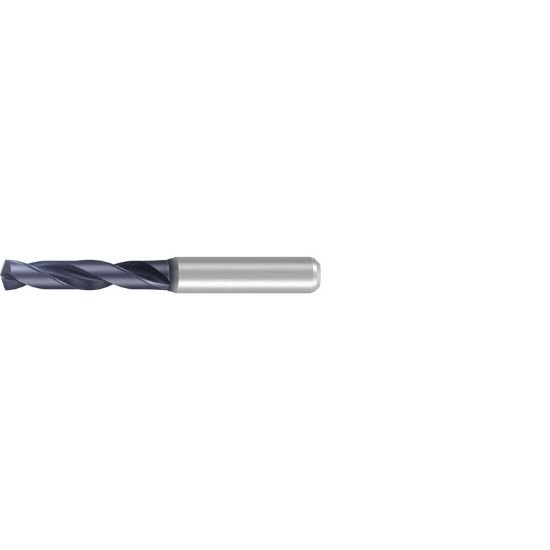

Picture of Emuge TA103324.1667 Carbide Drill Solid Carbide 140° 0.656 Diameter 0.708 Shank 4.842 OAL 2.874 Flute 2 Flute TiAlN

Emuge TA103324.1667 Carbide Drill Solid Carbide 140° 0.656 Diameter 0.708 Shank 4.842 OAL 2.874 Flute 2 Flute TiAlN

Part Number: EMUTA103324.1667 ISO: TA103324.1667
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$604.88
SKU: 1105868

Description

EMUGE 23352 Carbide Drill Shank 0.7087 TiAlN 0.6562 16.67MM - 21/32 Drill Dia140°Solid 3.0XD 2.8740 73.00MM Flute
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.8425 123.00MM
Shank/Pilot Dia 0.7087 18.00MM
Flutes/Inserts 2
Tool Dia 0.6563 16.67MM - 21/32
Flute Length 2.8740 73.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Cut Dia Min 0.6562 16.67MM - 21/32
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
