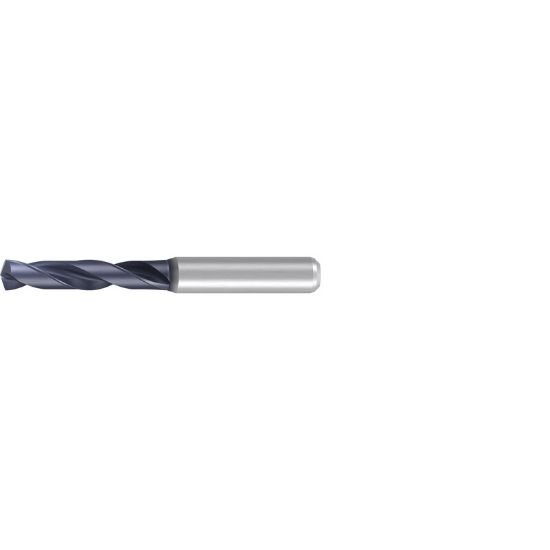

Emuge TA103324.1510 Carbide Drill Solid Carbide 140° 0.594 Diameter 0.629 Shank 4.527 OAL 2.559 Flute 2 Flute TiAlN

Name: Emuge TA103324.1510 Carbide Drill Solid Carbide 140° 0.594 Diameter 0.629 Shank 4.527 OAL 2.559 Flute 2 Flute TiAlN
SKU: 1105860
Price: 485.83 USD
Availability: InStock

Part Number: EMUTA103324.1510 ISO: TA103324.1510

Tool Cross-Reference

Looking for alternatives…

Manufacturer:

$485.83

Qty:

SKU: 1105860

Description

EMUGE 23345 Carbide Drill Shank 0.6299 TiAlN 0.5945 15.10MM Drill Dia140°Solid 3.0XD 2.5590 65.00MM Flute

Products specifications

Attribute name	Attribute value
General Information
Shipping State	MASSACHUSETTS
Made In USA	NO
Cutter Type	Carbide Drill
Coolant Thru	Non Coolant
Type Of Tool	Drill
Dimensions & Sizing
Overall Length	4.5276 115.00MM
Shank/Pilot Dia	0.6299 16.00MM
Flutes/Inserts	2
Tool Dia	0.5945 15.10MM
Flute Length	2.5590 65.00MM
Dia Deep	3.0x Dia
Geometry & Angles
Included Angle	140°
Performance & Capacity
Cut Rating	Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Cut Dia Min	0.5945 15.10MM
Materials & Finish
Tool Material	Carbide
Cutting Edge Mat	Carbide
Coating	TiAlN
