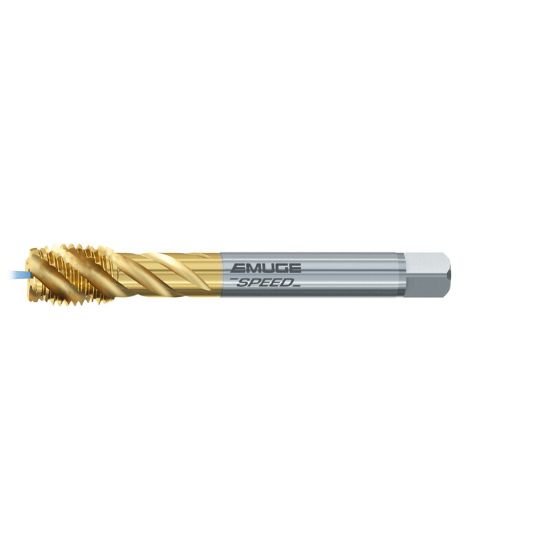

Picture of Emuge CW553700.5050 Tap 3/4-16.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Coolant HSSE TiN

Emuge CW553700.5050 Tap 3/4-16.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Coolant HSSE TiN

Part Number: EMUCW553700.5050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158656
Vendor: Sussex Tool and Supply
$257.54
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSSE
Tool Material Steel
Machine Side (Toolpost) TAP0.442x0.590
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 4.3310 110.01MM
Shank Or Pilot Diameter 0.5900 14.99MM
Family Group Speed Taps
Coolant Thru Thru Coolant
Coating TiN
Flutes Or Inserts 4
Type of Tool Tap
Length Type Standard
Performance Rating High Performance
Thread Pitch 16.00TPI
Thread Type NF/UNF/UNEF
Flute Direction Right
Thread Size 3/4"
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 2B
Dimension Standard DINSI
Tap Drill Range 0.6850 17.40MM - 0.7012 17.81MM
Tap Square 0.4420
Tap Chamfer 2.0P-3.0P
