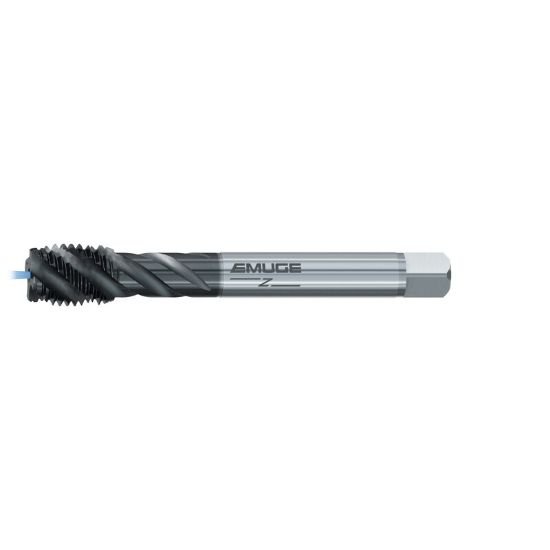

Picture of Emuge CU99C400.5016 Tap 3/4-10.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Coolant HSSE GLT-1

Emuge CU99C400.5016 Tap 3/4-10.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Coolant HSSE GLT-1

Part Number: EMUCU99C400.5016

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156103
Vendor: Sussex Tool and Supply
$257.42
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSSE
Tool Material Steel
Machine Side (Toolpost) TAP0.442x0.590
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 4.9210 124.99MM
Shank Or Pilot Diameter 0.5900 14.99MM
Family Group Coolant Fed - Blind Hole
Coolant Thru Thru Coolant
Coating GLT-1
Flutes Or Inserts 4
Type of Tool Tap
Length Type Standard
Performance Rating High Performance
Thread Pitch 10.00TPI
Thread Type NC/UNC
Flute Direction Right
Thread Size 3/4"
Tap Style Cut Spiral Flute
Tap Type Bottoming
Thread Limit 2B
Dimension Standard DINSI
Tap Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tap Square 0.4420
Tap Chamfer 1.5P-2.0P
