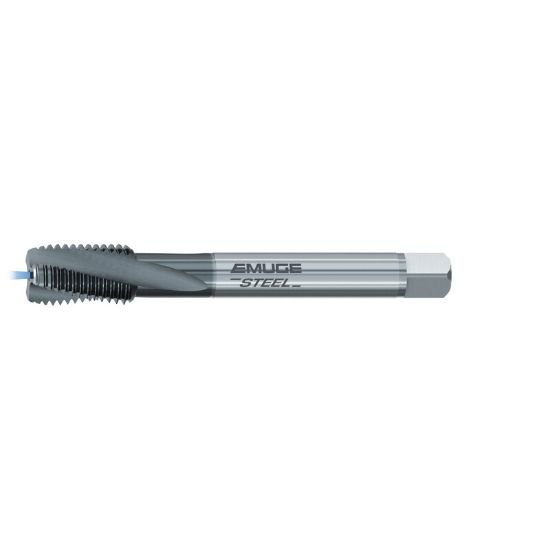

Picture of Emuge CU979000.5017 Tap 7/8-9.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant Carbide HSSE TiCN

Emuge CU979000.5017 Tap 7/8-9.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant Carbide HSSE TiCN

Part Number: EMUCU979000.5017 ISO: CU979000.5017

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156036
Vendor: Sussex Tool and Supply
$321.79
EMUGE CU979000.5017 7/8"x9.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiCN 2B NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TICN
Overall Length 5.5120 140.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6970 17.70MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 9.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 7/8"
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.7594 19.29MM - 0.7882 20.02MM
Tap Square 0.5230
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
