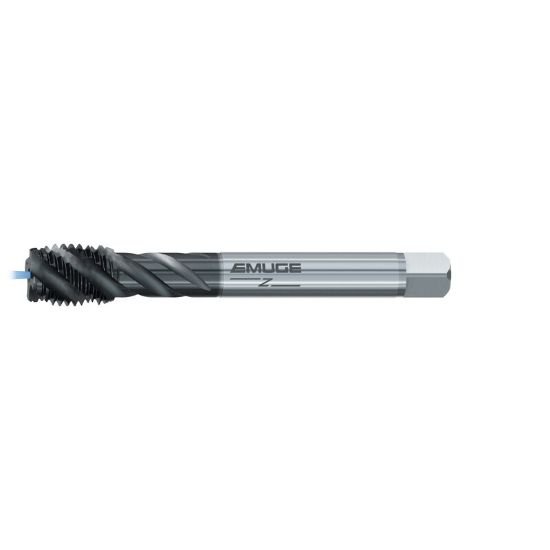

Picture of Emuge CU94C400.5015 Tap 5/8-11.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant Cobalt HSSE GLT-1

Emuge CU94C400.5015 Tap 5/8-11.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant Cobalt HSSE GLT-1

Part Number: EMUCU94C400.5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156069
Vendor: Sussex Tool and Supply
$205.58
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSSE
Tool Material Steel
Machine Side (Toolpost) TAP0.360x0.480
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 4.3310 110.01MM
Shank Or Pilot Diameter 0.4800 12.19MM
Family Group Coolant Fed - Blind Hole
Coolant Thru Thru Coolant
Coating GLT-1
Flutes Or Inserts 4
Type of Tool Tap
Length Type Standard
Performance Rating High Performance
Thread Pitch 11.00TPI
Thread Type NC/UNC
Flute Direction Right
Thread Size 5/8"
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 2B
Dimension Standard DINSI
Tap Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Tap Chamfer 2.0P-3.0P
