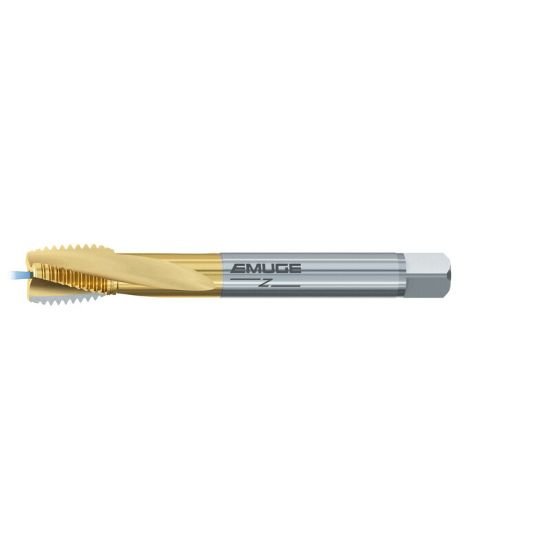

Picture of Emuge CU583701.5257 Tap 1-3/4-8.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant HSSE TiN

Emuge CU583701.5257 Tap 1-3/4-8.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant HSSE TiN

Part Number: EMUCU583701.5257

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156407
Vendor: Sussex Tool and Supply
$1,491.35
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSSE
Tool Material Steel
Machine Side (Toolpost) TAP1.072x1.430
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 7.8740 200.00MM
Shank Or Pilot Diameter 1.4300 36.32MM
Family Group D-Z-BF Taps
Coolant Thru Thru Coolant
Coating TiN
Flutes Or Inserts 5
Type of Tool Tap
Length Type Standard
Performance Rating High Performance
Thread Pitch 8.00TPI
Thread Type NC/UNC
Flute Direction Right
Thread Size 1-3/4"
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 2B
Dimension Standard DINSI
Tap Drill Range 1.6201 41.15MM - 1.6524 41.97MM
Tap Square 1.0720
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
