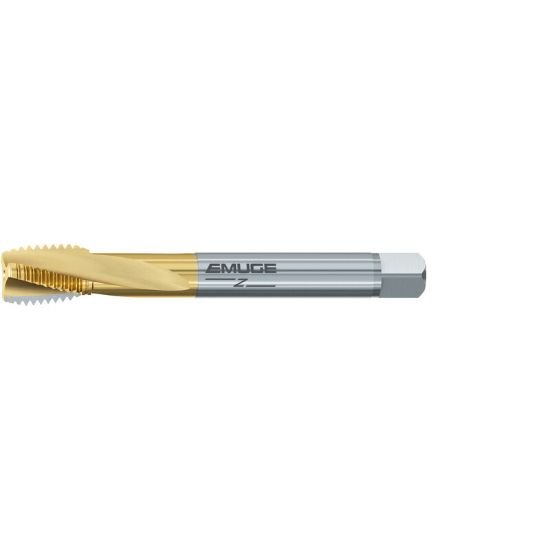

Picture of Emuge CU573701.5051 Tap 7/8-14.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Carbide HSSE TiN

Emuge CU573701.5051 Tap 7/8-14.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Carbide HSSE TiN

Part Number: EMUCU573701.5051 ISO: CU573701.5051
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$330.80
SKU: 1156435

Description

EMUGE CU573701.5051 7/8"x14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiN 2B NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 4.9210 124.99MM
Shank/Pilot Dia 0.6970 17.70MM
Flutes/Inserts 4
Thread Pitch 14.00TPI
Thread Size 7/8"
Tap Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Square 0.5230
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TIN
Standards & Identification
Dimension Standard DINSI
