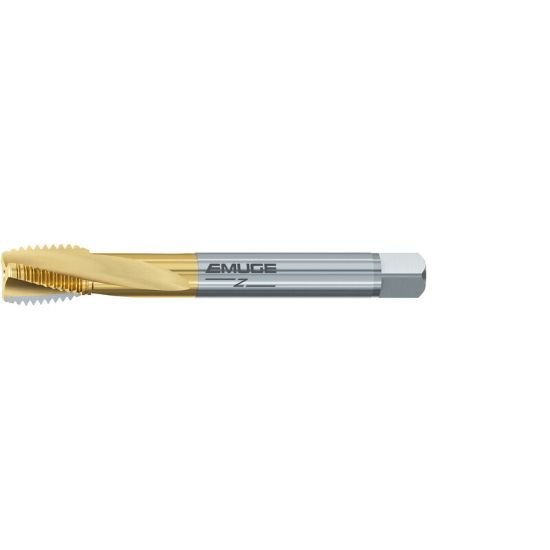

Picture of Emuge CU573701.5017 Tap 7/8-9.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE TiN

Emuge CU573701.5017 Tap 7/8-9.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE TiN

Part Number: EMUCU573701.5017 ISO: CU573701.5017
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$296.07
SKU: 1156426

Description

EMUGE CU573701.5017 7/8"x9.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 5.5120 140.00MM
Shank/Pilot Dia 0.6970 17.70MM
Flutes/Inserts 3
Thread Pitch 9.00TPI
Thread Size 7/8"
Tap Drill Range 0.7594 19.29MM - 0.7882 20.02MM
Tap Square 0.5230
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TIN
Standards & Identification
Dimension Standard DINSI
