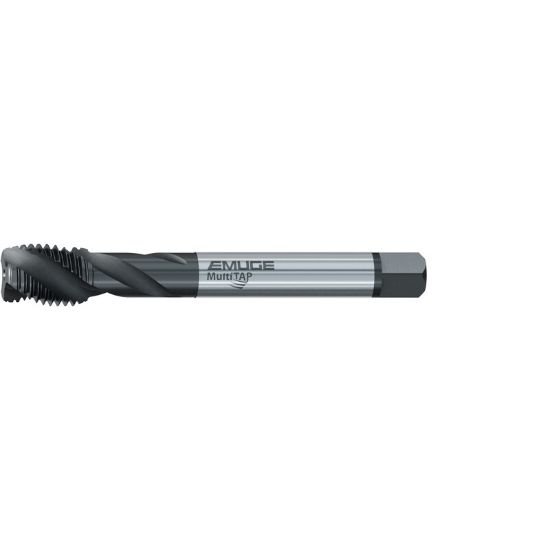

Picture of Emuge CU533200.5046 Tap 7/16-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Carbide HSSE Oxide + TiN

Emuge CU533200.5046 Tap 7/16-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Carbide HSSE Oxide + TiN

Part Number: EMUCU533200.5046 ISO: CU533200.5046

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157582
Vendor: Sussex Tool and Supply
$41.29
EMUGE CU533200.5046 7/16"x20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 2B/3B NF/UNF/UNEF Steel TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating Oxide + TiN
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 7/16"
Thread Limit 2B/3B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Tap Chamfer 2.0P-3.0P
