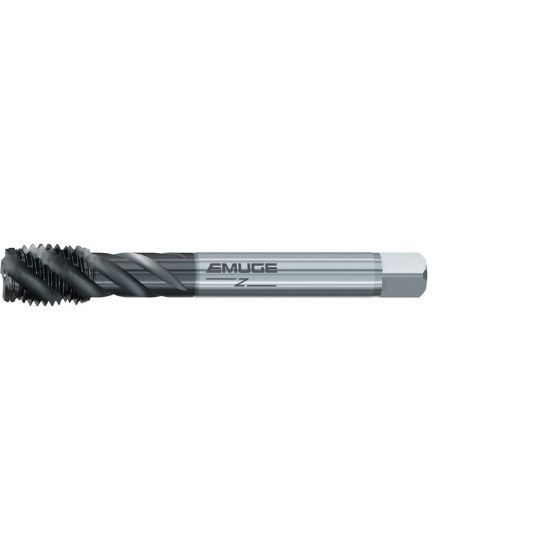

EMUGE CU50C400.5024 Tap 2-4.50TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P No Coolant HSSE GLT-1

ISO: CU50C400.5024

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU50C400.5024
Delivery date: 3-5 days
$2,293.20
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Sold by Pieces 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Material # Material#4, Material#10, Material#8
Coating GLT-1
Additional Key Information 1 Tapping
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Thread Type NC/UNC
Dimension Standard DINSI
Tap Chamfer 2.0P-3.0P
Thread Size 2"
Thread Limit 2B
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Flutes/Inserts 6
Thread Pitch 4.50TPI
Tool Material Steel
Flute Direction R - Right
Overall Len 9.8430 250.01MM
Length Type Standard
Machine Side TAP1.233x1.644
Shank/Pilot Dia 1.6440 41.76MM
Drill Range 1.7587 44.67MM - 1.8268 46.40MM
Machine Side Connection Type Tap Collet
Tap Square 1.2330
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
