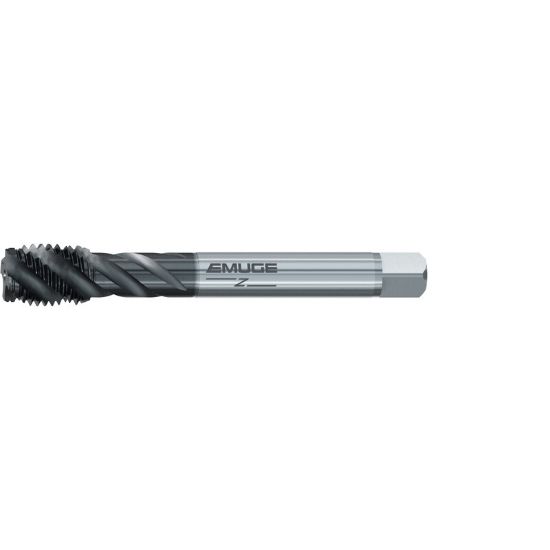

EMUGE CU50C400.5020 Tap 1-1/4-7.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P No Coolant HSSE GLT-1

ISO: CU50C400.5020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU50C400.5020
Delivery date: 3-5 days
$630.17
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Material # Material#8, Material#4, Material#10
Coating GLT-1
Additional Key Information 1 Tapping
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Sold by Pieces 1
Shipping State Massachusetts
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Thread Size 1-1/4"
Drill Range 1.0949 27.81MM - 1.1378 28.90MM
Machine Side Connection Type Tap Collet
Overall Len 7.0870 180.01MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Shank/Pilot Dia 1.0210 25.93MM
Machine Side TAP0.766x1.021
Tool Material Steel
Flutes/Inserts 5
Tap Square 0.7660
Thread Pitch 7.00TPI
Thread Limit 2B
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
