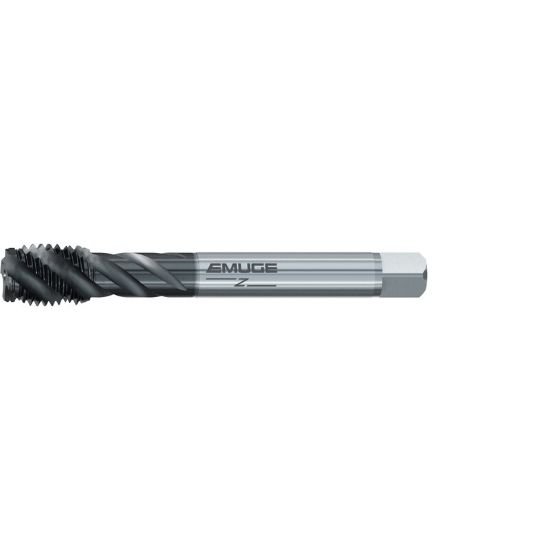

Picture of Emuge CU50C400.5259 Tap 1-7/8-8.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE GLT-1

Emuge CU50C400.5259 Tap 1-7/8-8.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE GLT-1

Part Number: EMUCU50C400.5259 ISO: CU50C400.5259

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156840
Vendor: Sussex Tool and Supply
$2,444.49
EMUGE CU50C400.5259 1-7/8"x8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE GLT-1 2B NC/UNC Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating GLT-1
Overall Length 8.8580 224.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.5190 38.58MM
Flutes/Inserts 8
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 8.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1-7/8"
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 1.7449 44.32MM - 1.7776 45.15MM
Tap Square 1.1390
Tap Chamfer 2.0P-3.0P
