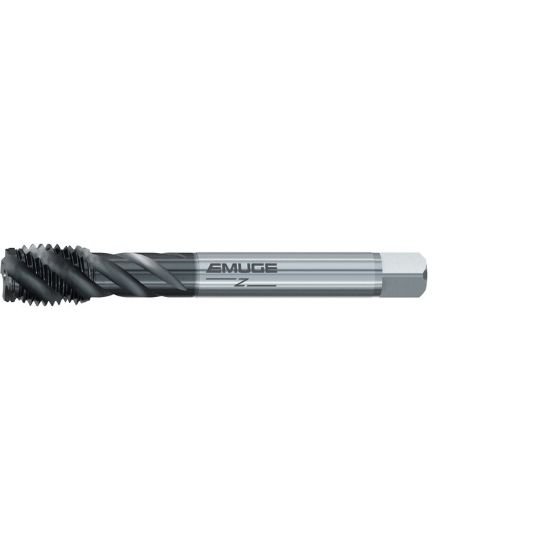

Picture of Emuge CU50C400.5257 Tap 1-3/4-8.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE GLT-1

Emuge CU50C400.5257 Tap 1-3/4-8.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE GLT-1

Part Number: EMUCU50C400.5257 ISO: CU50C400.5257

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156839
Vendor: Sussex Tool and Supply
$1,492.78
EMUGE CU50C400.5257 1-3/4"x8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE GLT-1 2B NC/UNC Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating GLT-1
Overall Length 7.8740 200.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.4300 36.32MM
Flutes/Inserts 8
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 8.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1-3/4"
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 1.6201 41.15MM - 1.6524 41.97MM
Tap Square 1.0720
Tap Chamfer 2.0P-3.0P
