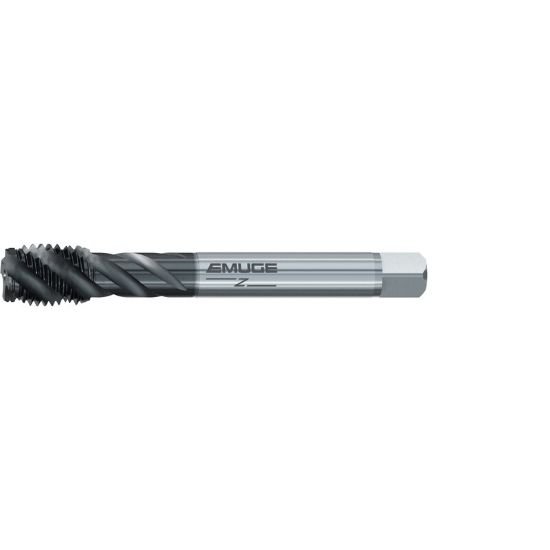

Picture of Emuge CU50C400.5024 Tap 2-4.50TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE GLT-1

Emuge CU50C400.5024 Tap 2-4.50TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE GLT-1

Part Number: EMUCU50C400.5024 ISO: CU50C400.5024

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156828
Vendor: Sussex Tool and Supply
$2,293.20
EMUGE CU50C400.5024 2"x4.50TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE GLT-1 2B NC/UNC Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating GLT-1
Overall Length 9.8430 250.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.6440 41.76MM
Flutes/Inserts 6
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 4.50TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 2"
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 1.7587 44.67MM - 1.8268 46.40MM
Tap Square 1.2330
Tap Chamfer 2.0P-3.0P
