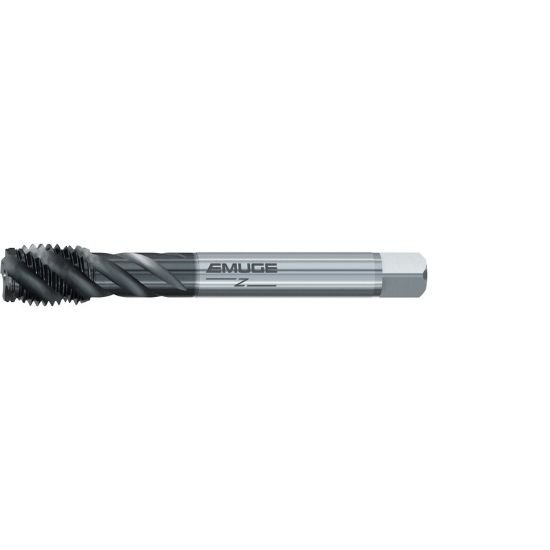

Picture of Emuge CU50C400.5023 Tap 1-3/4-5.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE GLT-1

Emuge CU50C400.5023 Tap 1-3/4-5.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE GLT-1

Part Number: EMUCU50C400.5023

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156827
Vendor: Sussex Tool and Supply
$1,441.94
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 1.5339 38.96MM - 1.5941 40.49MM
Dimension Standard DINSI
Shank Or Pilot Diameter 1.4300 36.32MM
Thread Limit 2B
Cutter Type Taping
Tap Square 1.0720
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 8.6610 219.99MM
Machine Side (Toolpost) TAP1.072x1.430
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 6
Shipping State MASSACHUSETTS
Family Group Enorm Z Taps
Cutting Edge Material HSSE
Tool Material Steel
Coating GLT-1
Coolant Thru Non Coolant
Tap Type Mod Bottom
Flute Direction Right
Thread Type NC/UNC
Made In USA No
Thread Size 1-3/4"
Thread Pitch 5.00TPI
Tap Chamfer 2.0P-3.0P
