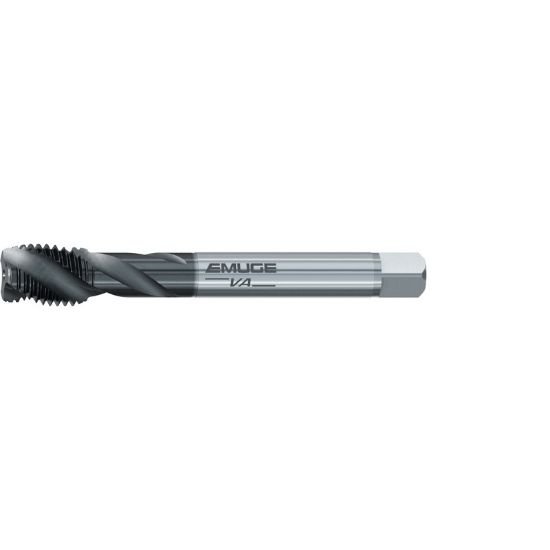

Picture of Emuge CU50C310.5257 Tap 1-3/4-8 TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE GLT-1

Emuge CU50C310.5257 Tap 1-3/4-8 TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE GLT-1

Part Number: EMUCU50C310.5257 ISO: CU50C310.5257
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$1,638.75
SKU: 1159784

Description

EMUGE CU50C310.5257 1-3/4"x8 TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE GLT-1 3B NC/UNC
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 7.8740 200.00MM
Shank/Pilot Dia 1.4300 36.32MM
Flutes/Inserts 6
Thread Pitch 8.00TPI
Thread Size 1-3/4"
Tap Drill Range 1.6201 41.15MM - 1.6524 41.97MM
Tap Square 1.0720
Performance & Capacity
Cut Rating Stainless Steel, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating GLT-1
Standards & Identification
Dimension Standard DINSI
