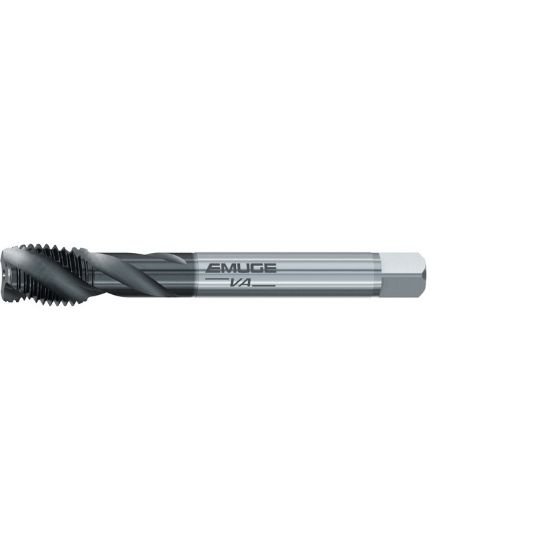

Picture of Emuge CU50C310.5253 Tap 1-1/2-8.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE GLT-1

Emuge CU50C310.5253 Tap 1-1/2-8.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE GLT-1

Part Number: EMUCU50C310.5253 ISO: CU50C310.5253
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$988.67
SKU: 1159782

Description

EMUGE CU50C310.5253 1-1/2"x8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE GLT-1 3B NC/UNC Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 7.8740 200.00MM
Shank/Pilot Dia 1.2330 31.32MM
Flutes/Inserts 5
Thread Pitch 8.00TPI
Thread Size 1-1/2"
Tap Drill Range 1.3484 34.25MM - 1.4024 35.62MM
Tap Square 0.9250
Performance & Capacity
Cut Rating Stainless Steel, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating GLT-1
Standards & Identification
Dimension Standard DINSI
