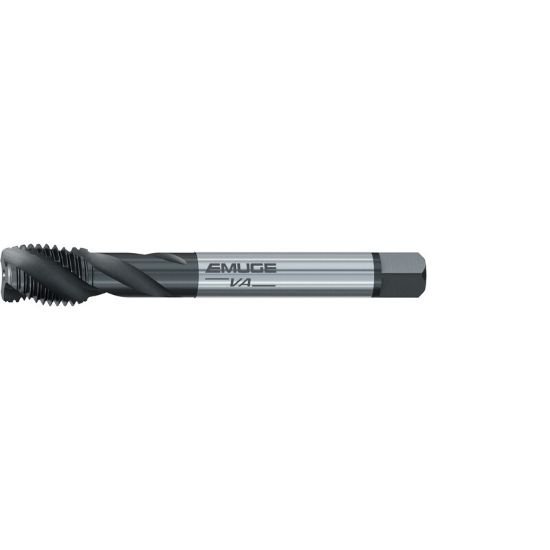

Emuge CU503200.5267 Tap 2-3/4-8 TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSS HSSE Oxide + TiN

Part Number: EMUCU503200.5267 ISO: CU503200.5267
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$3,334.09
SKU: 1159770

Description

EMUGE CU503200.5267 2-3/4"x8 TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 2B NC/UNC
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 10.8270 275.01MM
Flutes/Inserts 8
Thread Pitch 8.00TPI
Thread Size 2-3/4"
Tap Drill Range 2.6512 67.34MM - 2.6280 66.75MM
Performance & Capacity
Cut Rating Stainless Steel, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Cutting Edge Mat HSSE
Coating Oxide + TiN
Standards & Identification
Dimension Standard DINSI
