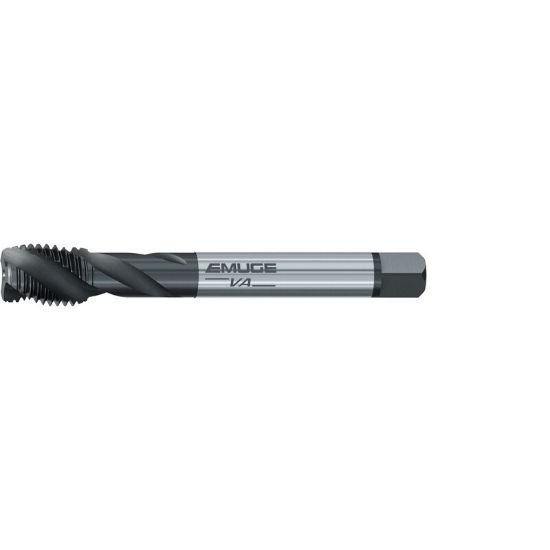

Picture of Emuge CU503200.5024 Tap 2-4.50TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE Oxide + TiN

Emuge CU503200.5024 Tap 2-4.50TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE Oxide + TiN

Part Number: EMUCU503200.5024 ISO: CU503200.5024
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$1,979.84
SKU: 1160108

Description

EMUGE CU503200.5024 2"x4.50TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 2B NC/UNC Steel TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 9.8430 250.01MM
Shank/Pilot Dia 1.6440 41.76MM
Flutes/Inserts 5
Thread Pitch 4.50TPI
Thread Size 2"
Tap Drill Range 1.7587 44.67MM - 1.8268 46.40MM
Tap Square 1.2330
Performance & Capacity
Cut Rating Stainless Steel, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Oxide + TiN
Standards & Identification
Dimension Standard DINSI
