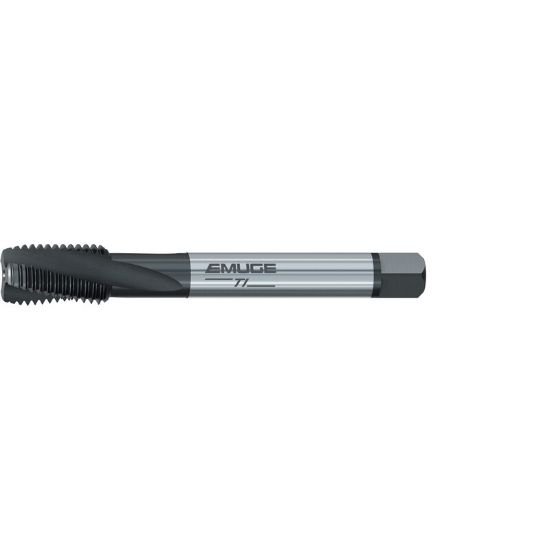

Emuge CU456001.5255 Tap 1-5/8-8.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Cobalt HSSE Nitride + Steam Oxide

Part Number: EMUCU456001.5255 ISO: CU456001.5255

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159642
$865.72
EMUGE CU456001.5255 1-5/8"x8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Nitride + Steam Oxide 2B NC/UNC Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating Nitride + Steam Oxide
Overall Length 7.8740 200.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.3050 33.15MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 8.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1-5/8"
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 1.4591 37.06MM - 1.5276 38.80MM
Tap Square 0.9790
Tap Chamfer 2.0P-3.0P
