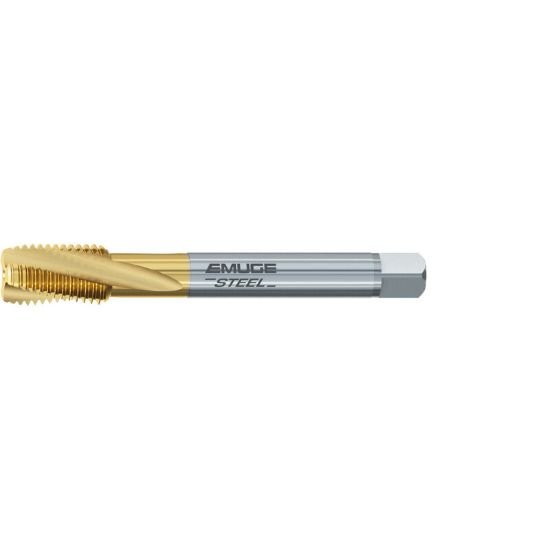

Picture of Emuge CU451400.5052 Tap 1-12.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Carbide HSSE TiN

Emuge CU451400.5052 Tap 1-12.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Carbide HSSE TiN

Part Number: EMUCU451400.5052 ISO: CU451400.5052

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158402
Vendor: Sussex Tool and Supply
$336.66
EMUGE CU451400.5052 1"x12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiN 2B NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 5.5120 140.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.8000 20.32MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 12.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 1"
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.9134 23.20MM - 0.9350 23.75MM
Tap Square 0.6000
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
