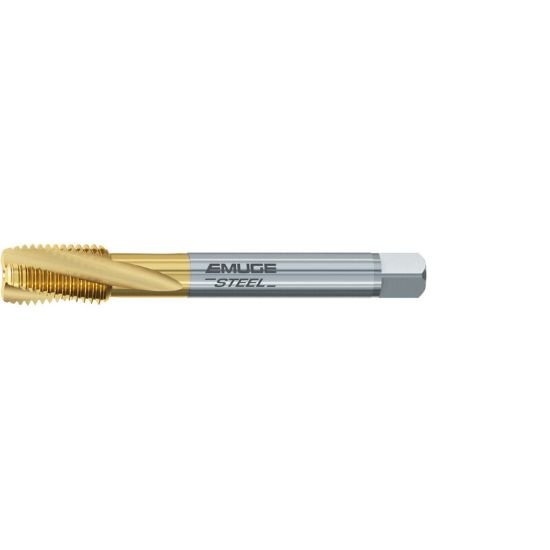

Picture of Emuge CU451400.5020 Tap 1-1/4-7.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE TiN

Emuge CU451400.5020 Tap 1-1/4-7.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE TiN

Part Number: EMUCU451400.5020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158395
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 1.0949 27.81MM - 1.1378 28.90MM
Dimension Standard DINSI
Shank Or Pilot Diameter 1.0210 25.93MM
Thread Limit 2B
Cutter Type Taping
Tap Square 0.7660
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 7.0870 180.01MM
Multi Spindle Yes
Machine Side (Toolpost) TAP0.766x1.021
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 4
Shipping State MASSACHUSETTS
Family Group Rekord D Taps
Cutting Edge Material HSSE
Tool Material Steel
Coating TIN
Coolant Thru Non Coolant
Tap Type Mod Bottom
Flute Direction Right
Thread Type NC/UNC
Made In USA No
Thread Size 1-1/4"
Thread Pitch 7.00TPI
Tap Chamfer 2.0P-3.0P
