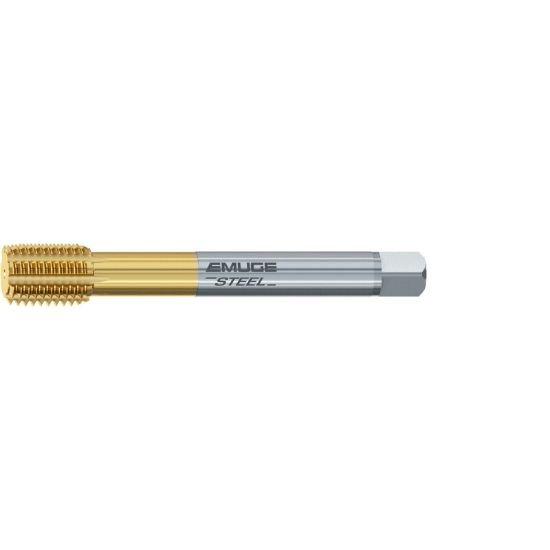

Picture of Emuge CU377F00.5014 Tap 9/16-12.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

Emuge CU377F00.5014 Tap 9/16-12.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

Part Number: EMUCU377F00.5014 ISO: CU377F00.5014

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157049
Vendor: Sussex Tool and Supply
$201.15
EMUGE CU377F00.5014 9/16"x12.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TIN
Overall Length 4.3310 110.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4290 10.90MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 12.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size 9/16"
Thread Limit 2B
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.5197 13.20MM - 0.5311 13.49MM
Tap Square 0.3220
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
