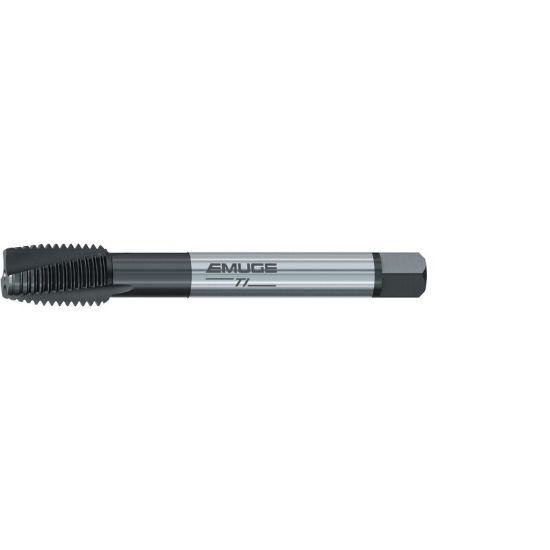

Emuge CU306011.5023 Tap 1-3/4-5.00TPI Plug NC/UNC DINSI 4P-5P HSSE Nitride + Steam Oxide

Part Number: EMUCU306011.5023 ISO: CU306011.5023

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159495
$1,241.42
EMUGE CU306011.5023 1-3/4"x5.00TPI Cut Spiral Point Plug 4P-5P HSSE Nitride + Steam Oxide 3B NC/UNC Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating Nitride + Steam Oxide
Overall Length 8.6610 219.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.4300 36.32MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 5.00TPI
Thread Type NC/UNC
Flute Direction LEFT
Thread Size 1-3/4"
Thread Limit 3B
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DINSI
Tap Drill Range 1.5339 38.96MM - 1.5941 40.49MM
Tap Square 1.0720
Tap Chamfer 4P-5P
