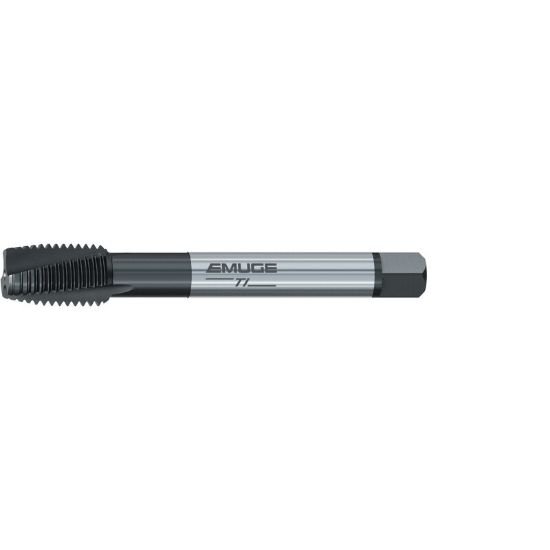

Emuge CU306001.5023 Tap 1-3/4-5.00TPI Plug NC/UNC DINSI 4P-5P HSSE Nitride + Steam Oxide
Emuge CU306001.5023 Tap 1-3/4-5.00TPI Plug NC/UNC DINSI 4P-5P HSSE Nitride + Steam Oxide
Part Number: EMUCU306001.5023 ISO: CU306001.5023
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
EMUGE
SKU:
1159451
Vendor:
Sussex Tool and Supply
$1,263.90
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
EMUGE CU306001.5023 1-3/4"x5.00TPI Cut Spiral Point Plug 4P-5P HSSE Nitride + Steam Oxide 2B NC/UNC Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name
Attribute value
Shipping State
MASSACHUSETTS
Made In USA
NO
Cutter Type
Taping
Tool Material
Steel
Cutting Edge Mat
HSSE
Machine Side Connection Type
Tap Collet
Cut Rating
High Temp, Inconel, Titanium
Coating
Nitride + Steam Oxide
Overall Length
8.6610 219.99MM
Coolant Thru
Non Coolant
Shank/Pilot Dia
1.4300 36.32MM
Flutes/Inserts
4
Type Of Tool
Tap
Length Type
STANDARD
Performance Rating
High Performance
Thread Pitch
5.00TPI
Thread Type
NC/UNC
Flute Direction
LEFT
Thread Size
1-3/4"
Thread Limit
2B
Tap Style
Cut Spiral Point
Tap Type
Plug
Dimension Standard
DINSI
Tap Drill Range
1.5339 38.96MM - 1.5941 40.49MM
Tap Square
1.0720
Tap Chamfer
4P-5P
