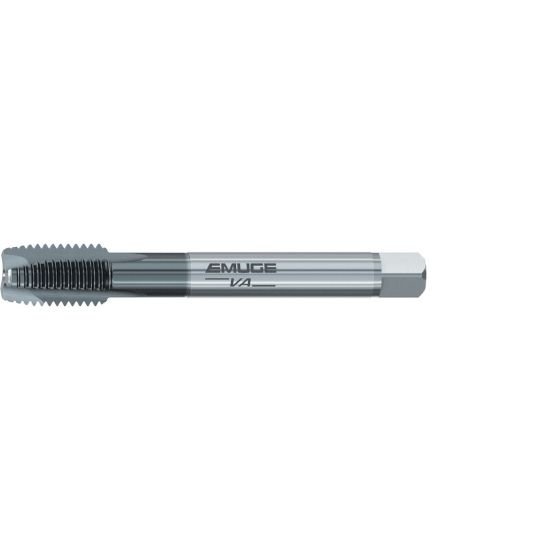

Picture of Emuge CU209300.5255 Tap 1-5/8-8.00TPI Plug NC/UNC DINSI 4P-5P Cobalt HSSE TiCN

Emuge CU209300.5255 Tap 1-5/8-8.00TPI Plug NC/UNC DINSI 4P-5P Cobalt HSSE TiCN

Part Number: EMUCU209300.5255 ISO: CU209300.5255

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1160163
Vendor: Sussex Tool and Supply
$888.49
EMUGE CU209300.5255 1-5/8"x8.00TPI Cut Spiral Point Plug 4P-5P HSSE TiCN 2B NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <42HRC Steel
Coating TICN
Overall Length 7.8740 200.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.3050 33.15MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 8.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size 1-5/8"
Thread Limit 2B
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DINSI
Tap Drill Range 1.4591 37.06MM - 1.5276 38.80MM
Tap Square 0.9790
Tap Chamfer 4P-5P
