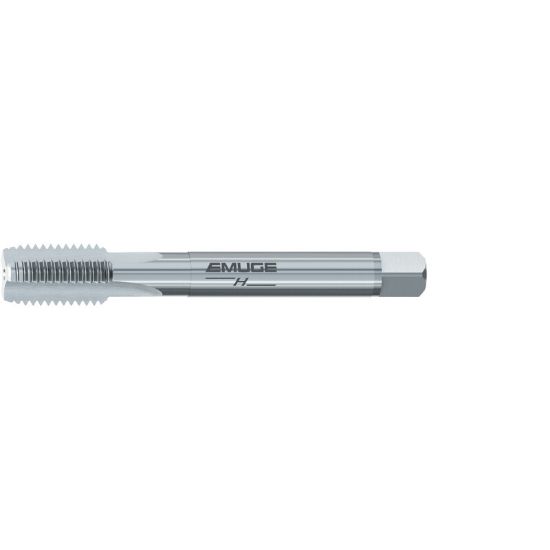

EMUGE CU100501.5265 Tap 2-1/2-8.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P No Coolant HSSE Nitride

ISO: CU100501.5265

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU100501.5265
Delivery date: 3-5 days
$2,664.67
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#10I, Material#10, Material#10T
Coating Nitride
Additional Key Information 1 Tapping
Application Cut Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side TAP1.575x2.100
Tool Material Steel
Thread Pitch 8.00TPI
Tap Chamfer 2.0P-3.0P
Tap Style Cut Straight Flute
Thread Size 2-1/2"
Machine Side Connection Type Tap Collet
Drill Range 2.3650 60.07MM - 2.4024 61.02MM
Tap Type Mod Bottom
Thread Limit 2B
Cut Rating High Temp, Inconel, Titanium
Overall Len 10.8270 275.01MM
Flutes/Inserts 6
Tap Square 1.5750
Flute Direction STRAIGHT
Thread Type NC/UNC
Dimension Standard DINSI
Shank/Pilot Dia 2.1000 53.34MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
Energy Yes
