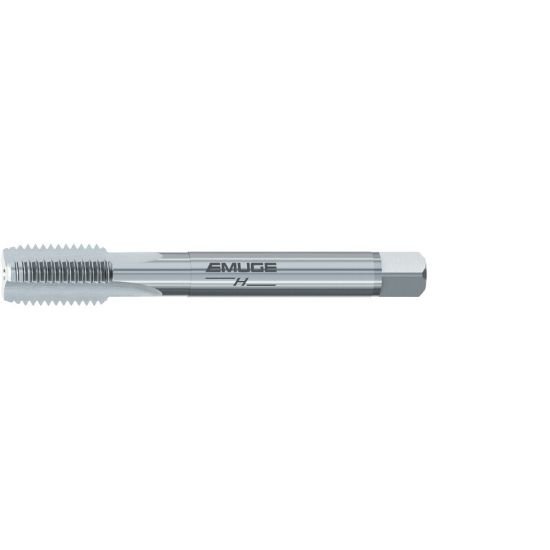

Picture of Emuge CU100501.5261 Tap 2-8 TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE Nitride

Emuge CU100501.5261 Tap 2-8 TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE Nitride

Part Number: EMUCU100501.5261 ISO: CU100501.5261
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$2,097.09
SKU: 1155701

Description

EMUGE CU100501.5261 2"x8 TPI Cut Straight Flute Mod Bottom 2.0P-3.0P HSSE Nitride 2B NC/UNC
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction STRAIGHT
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 8.8580 224.99MM
Shank/Pilot Dia 1.6440 41.76MM
Flutes/Inserts 6
Thread Pitch 8.00TPI
Thread Size 2"
Tap Drill Range 1.8701 47.50MM - 1.9024 48.32MM
Tap Square 1.2330
Performance & Capacity
Cut Rating High Temp, Inconel, Titanium
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride
Standards & Identification
Dimension Standard DINSI
