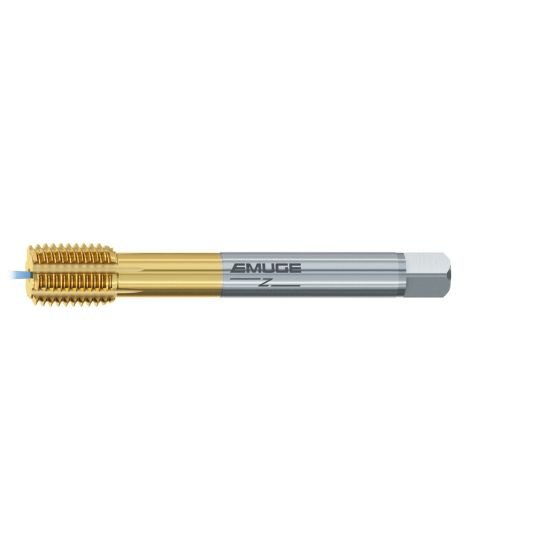

Picture of Emuge C523Z700.4038 Tap 1/2-14.00TPI Pipe Whitworth DIN/DIn 2.0P-3.0P Coolant Carbide HSSE-Powder Metal TiN

Emuge C523Z700.4038 Tap 1/2-14.00TPI Pipe Whitworth DIN/DIn 2.0P-3.0P Coolant Carbide HSSE-Powder Metal TiN

Part Number: EMUC523Z700.4038 ISO: C523Z700.4038
Looking for alternatives…
Find a drill for this tap 1/2" × 14.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157207
Vendor: Sussex Tool and Supply
$595.25

Description

EMUGE C523Z700.4038 1/2"x14.00TPI Roll Form Pipe 2.0P-3.0P HSSE-PM TiN PIPE Whitworth Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type Whitworth
Flute Direction STRAIGHT
Tap Style Roll Form
Tap Type Pipe
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 4.9213 125.00MM
Shank/Pilot Dia 0.6290 15.98MM
Thread Pitch 14.00TPI
Thread Size 1/2"
Tap Drill Range 0.7913 20.10MM
Tap Square 0.4720
Performance & Capacity
Cut Rating <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TIN
Standards & Identification
Dimension Standard DIN/DIN
