  • EMUGE C523W700.0124 Tap Mod Bottom M24-3.00MM 6H Metric DIN/DIN Yes Coolant HSSE-Powder Metal TiN

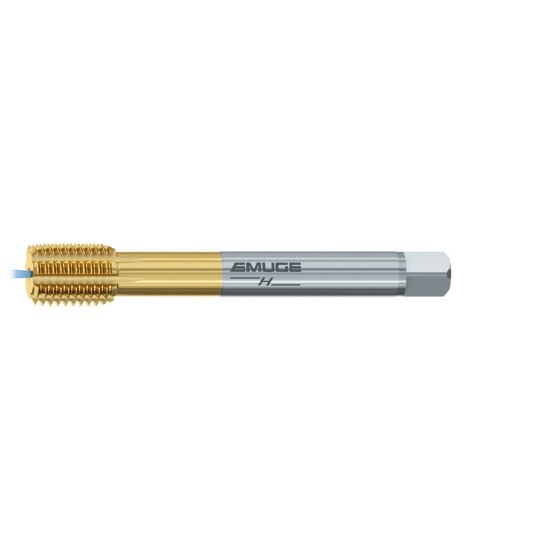

Picture of EMUGE C523W700.0124 Tap Mod Bottom M24-3.00MM 6H Metric DIN/DIN Yes Coolant HSSE-Powder Metal TiN

EMUGE C523W700.0124 Tap Mod Bottom M24-3.00MM 6H Metric DIN/DIN Yes Coolant HSSE-Powder Metal TiN

ISO: C523W700.0124

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC523W700.0124
Delivery date: 3-5 days
$680.18
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Material # Material#15, Material#20, Material#16, Material#4
Sold by Pieces 1
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Additional Key Information 1 Tapping
Performance Rating High Performance
Coating TiN
Uncategorized
Made In USA No
Dimensional Specifications
Thread Limit 6H
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Overall Len 6.2992 160.00MM
Tap Chamfer 2.0P-3.0P
Thread Type Metric
Shank/Pilot Dia 0.7600 19.30MM
Thread Size M24
Thread Pitch 3.00MM
Tool Material Steel
Tap Square 0.5700
Length Type Standard
Tap Style Roll Form
Machine Side TAP0.570x0.760
Drill Range 0.8886 22.57MM - 0.8965 22.77MM
Dimension Standard DIN/DIN
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
