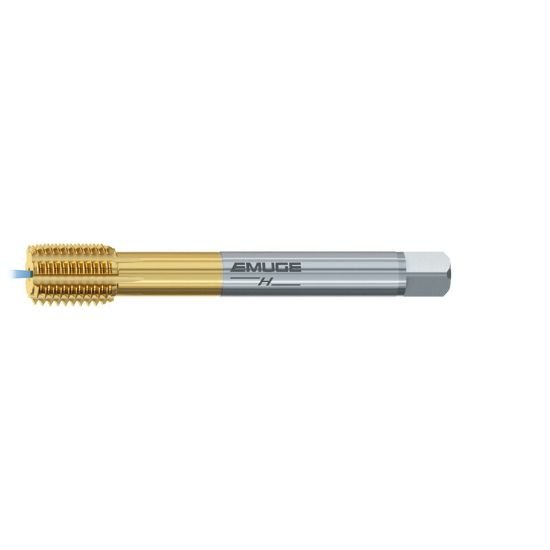

Picture of Emuge C523W700.0136 Tap M36-4.00mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Coolant HSSE-Powder Metal TiN

Emuge C523W700.0136 Tap M36-4.00mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Coolant HSSE-Powder Metal TiN

Part Number: EMUC523W700.0136 ISO: C523W700.0136
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$1,523.09
SKU: 1157278

Description

EMUGE C523W700.0136 M36x4.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 7.8740 200.00MM
Shank/Pilot Dia 1.1020 27.99MM
Thread Pitch 4.00MM
Thread Size M36
Tap Drill Range 1.3528 34.36MM - 1.3315 33.82MM
Tap Square 0.8660
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TIN
Standards & Identification
Dimension Standard DIN/DIN
