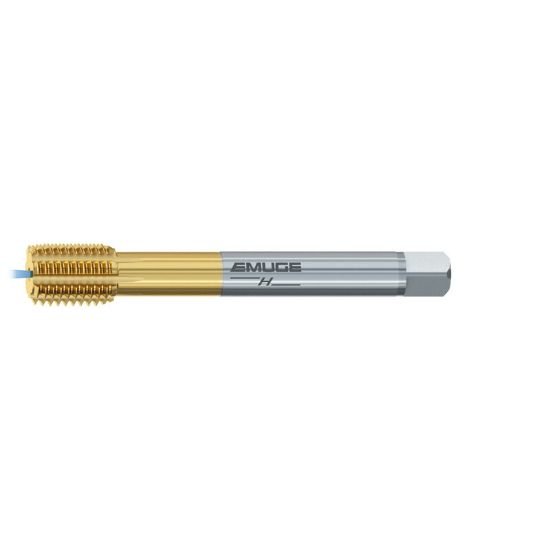

Picture of Emuge C523W700.0133 Tap M33-3.50mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Coolant HSSE-Powder Metal TiN

Emuge C523W700.0133 Tap M33-3.50mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Coolant HSSE-Powder Metal TiN

Part Number: EMUC523W700.0133 ISO: C523W700.0133
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M33 × 3.50MM Roll Form
% of thread 65%
Target drill —
Drill products available across the % thread range
55% 72.5%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±3% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157277
Vendor: Sussex Tool and Supply
$1,318.91

Description

EMUGE C523W700.0133 M33x3.50MM Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 7.0866 180.00MM
Shank/Pilot Dia 0.9840 24.99MM
Thread Pitch 3.50MM
Thread Size M33
Tap Drill Range 1.2240 31.09MM - 1.2429 31.57MM
Tap Square 0.7870
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TIN
Standards & Identification
Dimension Standard DIN/DIN
