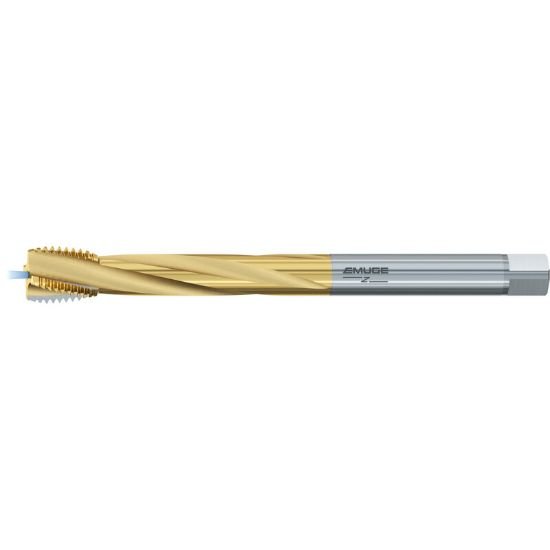

Picture of Emuge C4063701.0453 Tap Mod Bottom M24-2.00mm 6H Metric DIN/DIn Coolant HSSE TiN Pulley Long

Emuge C4063701.0453 Tap Mod Bottom M24-2.00mm 6H Metric DIN/DIn Coolant HSSE TiN Pulley Long

Part Number: EMUC4063701.0453

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156371
Vendor: Sussex Tool and Supply
$759.65
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSSE
Tool Material Steel
Machine Side (Toolpost) TAP0.571x0.708
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 9.4488 240.00MM
Shank Or Pilot Diameter 0.7080 17.98MM
Family Group D-Z-BF Taps
Coolant Thru Thru Coolant
Coating TiN
Type of Tool Tap
Length Type Long
Performance Rating High Performance
Thread Pitch 2.00MM
Thread Type Metric
Flute Direction Right
Thread Size M24
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 6H
Dimension Standard DIN/DIN
Tap Drill Range 0.8630 21.92MM - 0.8835 22.44MM
Tap Square 0.5700
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
